High-end wood CNC machinery.
Supplied, installed and supported across Saudi Arabia, China and Dubai.

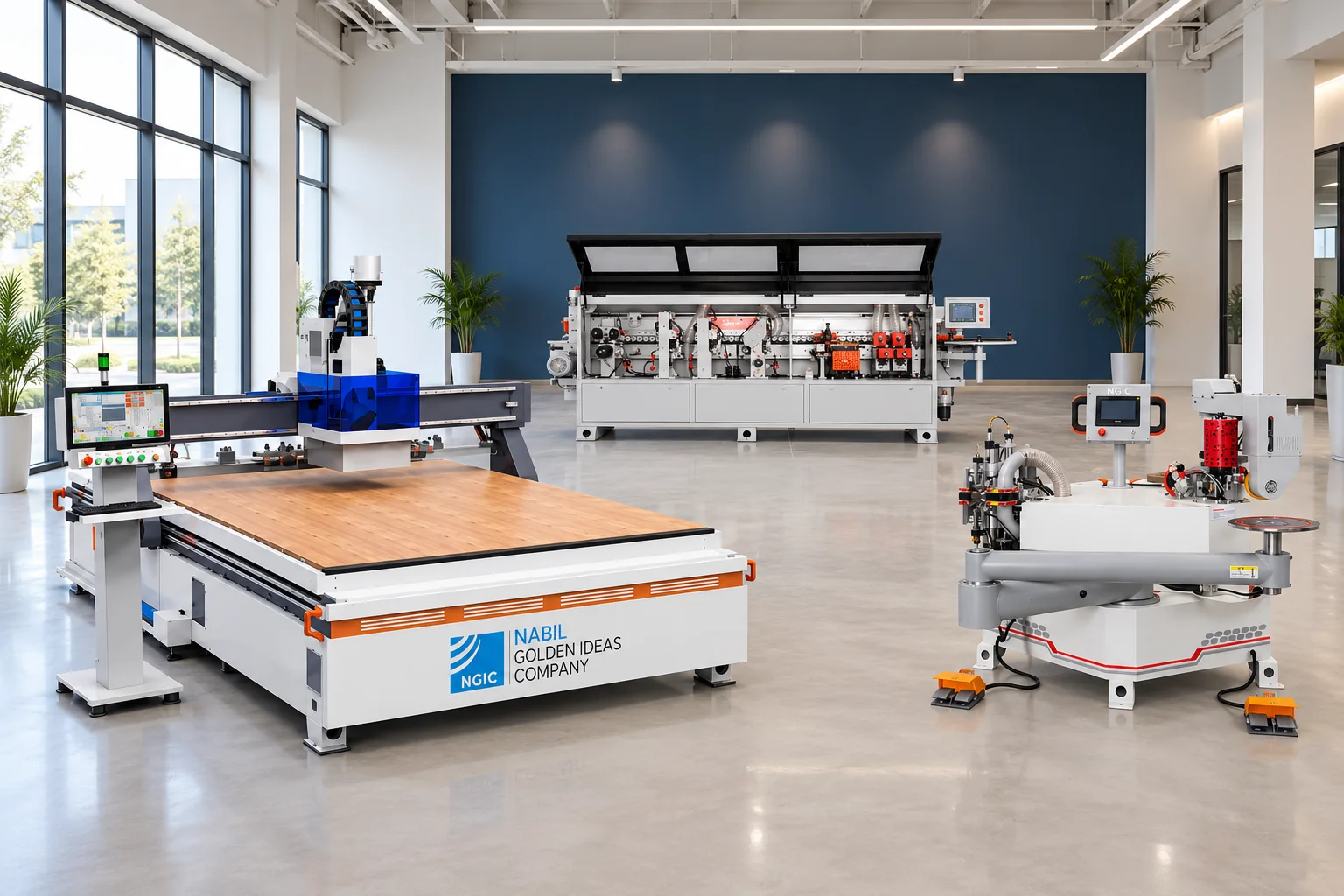

NABLUXMACHINERY DIVISION Precision. Productivity. Profitability.
We manage everything between the factory gate and your production floor: specification, sourcing, shipping, customs clearance, positioning, commissioning and operator training.
Our own facility runs this machinery daily. The advice you receive comes from operating it, not from a brochure.
Every stage of panel processing.
From compact workshop units to automatic, high-volume production lines.

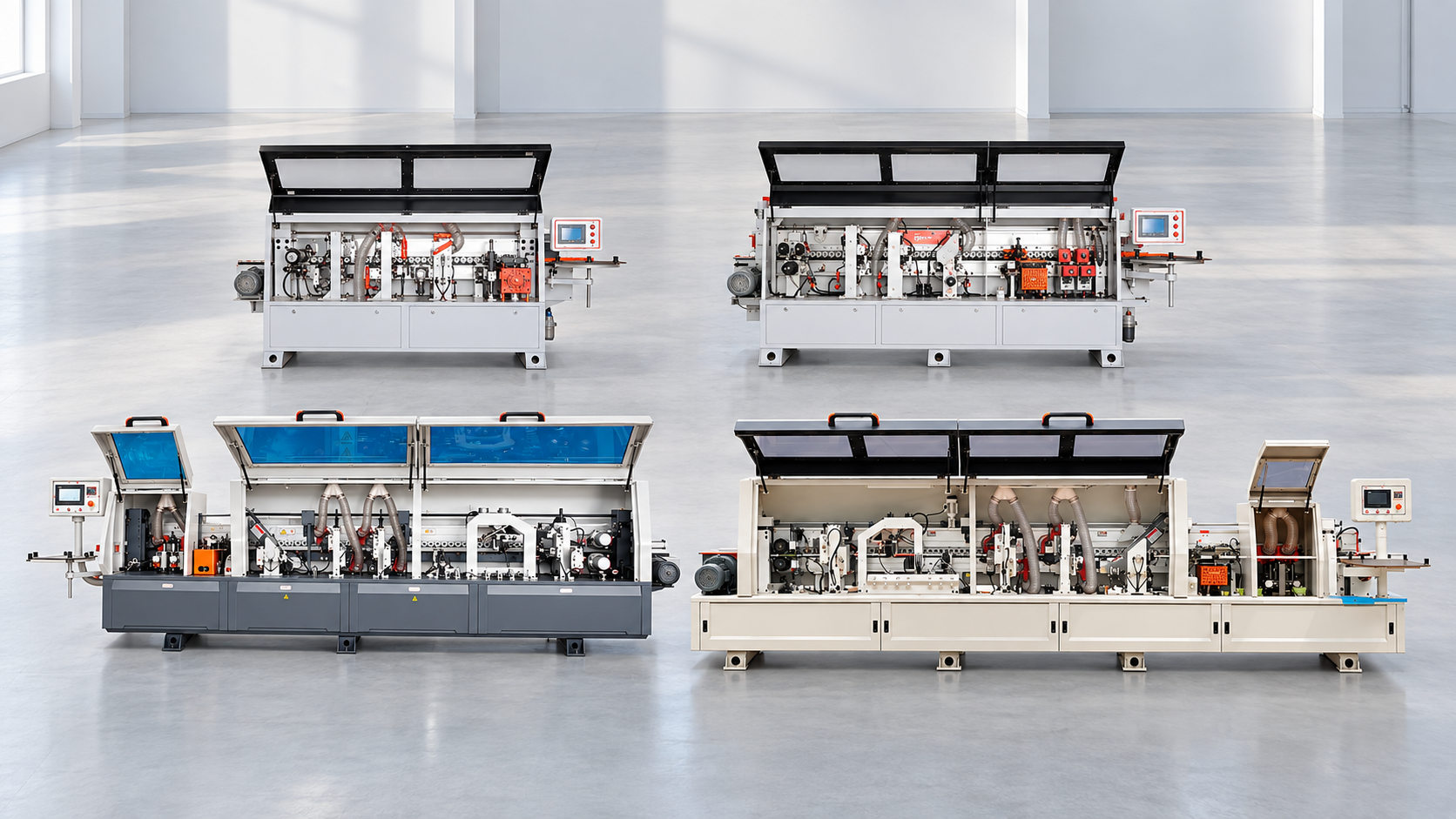

FAST — automatic edge banders
A continuous line that takes a raw panel and returns a finished, sealed edge. Four models, from an entry-level automatic line to continuous-shift production.
FAST is the workhorse of the range. Every model runs the same seven-stage sequence — pre-milling, gluing, end cutting, top/bottom trimming, corner rounding, scraping and buffing — so a panel finished on any FAST machine is ready to install the moment it leaves the bed. Choose the model by feed rate and shift pattern, not by output quality.
Entry-level automatic edge bander for workshops moving on from manual banding.
- Overall size
- 2980 × 750 × 1250 mm
- Edge thickness
- 0.4 – 3 mm
- Sheet thickness
- 10 – 60 mm
- Feed rate
- 12 – 20 m/min
- Total power
- 9.9 kW
- Weight
- ≈ 1100 kg
- EVA gluing with strong, durable bonding.
- Five-stage finishing: buffing, scraping, fine trim, end cutting and gluing.
- Minimum workpiece width 80 mm.
- Air pressure 6 kg for stable clamping.
Adds pre-milling for a cleaner bond and a fully finished panel edge.
- Overall size
- 3980 × 750 × 1250 mm
- Edge thickness
- 0.4 – 3 mm
- Sheet thickness
- 10 – 60 mm
- Feed rate
- 12 – 20 m/min
- Total power
- 13.3 kW
- Weight
- ≈ 1200 kg
- Pre-milling squares the panel edge for better bonding.
- Six-stage finishing including EVA gluing and fine trim.
- Consistent feed rate up to 20 m/min.
- Minimum workpiece width 80 mm.
Full-function line with corner rounding and extended feed for high-volume output.
- Overall size
- 6000 × 900 × 1650 mm
- Edge thickness
- 0.4 – 3 mm
- Sheet thickness
- 10 – 60 mm
- Feed rate
- 14 – 18 m/min
- Total power
- 17.74 kW
- Weight
- ≈ 2200 kg
- Ten-station line: pre-mill, EVA, pressing, end cut, rough trim, fine trim, corner rounding, scraping, flexible flush scraping and buffing.
- Corner rounding for a smooth, hand-safe finish.
- High efficiency with stable performance across long runs.
- Durable structure and easy operation.
Heavy-duty frame built for continuous, multi-shift production.
- Overall size
- 6800 × 1100 × 1600 mm
- Edge thickness
- 0.4 – 3 mm
- Sheet thickness
- 10 – 60 mm
- Feed rate
- 12 – 20 m/min
- Total power
- 15.53 kW
- Weight
- ≈ 2800 kg
- Larger frame for continuous shift production.
- Same ten-station sequence as FAST 1010 with a longer footprint.
- Flexible flush scraping for a perfect edge surface.
- Stable performance and easy operation.

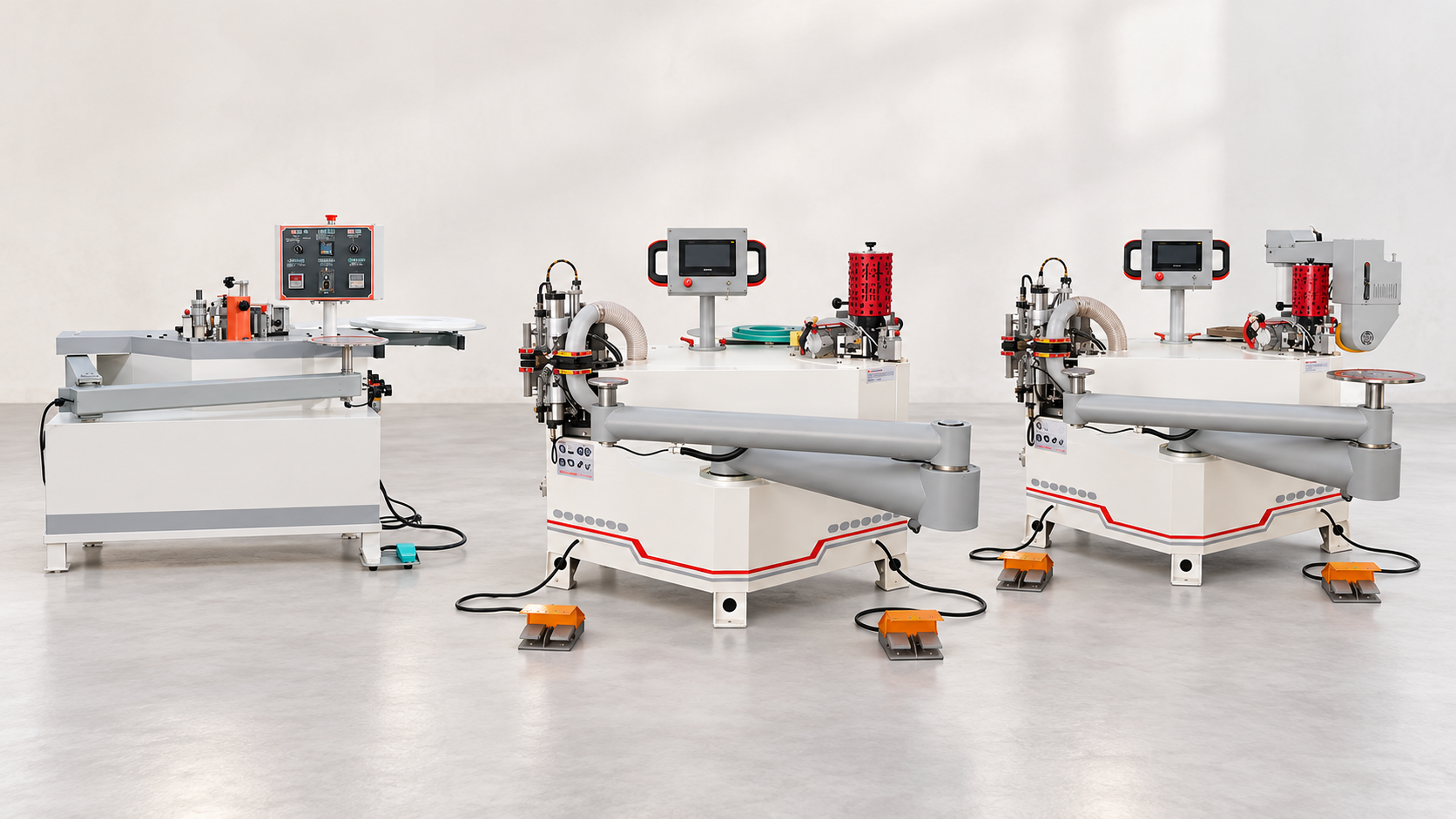

CURVE — curve banding and trimming
All-in-one systems for curved and shaped panels, from a compact workshop unit to repeat batch production with stored programmes.
CURVE machines solve a problem that straight-line edge banders cannot: shaped and curved panels. Each unit combines banding and trimming in a single pass, using infrared docking or hot-air assist to keep the tape pliable through tight radii. Ideal for round tables, decorative panels, custom doors and any component whose edge does not run in a straight line.
All-in-one banding and trimming for mixed straight and curved work.
- Power supply
- 380V / 3PH / 50Hz
- Total power
- 5.7 kW
- Sealing width
- 14 – 70 mm
- Glue type
- PUR / EVA
- Sealing speed
- 0 – 20 cm/s
- Weight
- 588 kg
- 225 cm folding arm with 100 kg load capacity.
- EVA and PUR glue compatibility with Teflon-coated pot.
- One-time 14–70 mm trimming in a single pass.
- 15° head rotation for shaped and large panels.
Compact, high-temperature curve bander for smaller workshops and prototyping.
- Power supply
- 220V / 50Hz
- Total power
- 3.8 kW
- Edge width
- 14 – 70 mm
- Glue pot
- 2800 ml
- Weight
- 235 kg
- High-temperature glue assembly for heat-resistant bonding.
- Two-point automatic glue cleaning.
- Hot-air assist for firm adhesion on curved edges.
- Compact footprint — 235 kg, easy to reposition.
Advanced all-in-one for repeat batch production with right-banding and left-trimming in one machine.
- Power supply
- 380V / 3PH / 50Hz
- Total power
- 6.5 kW
- Sealing width
- 14 – 70 mm
- Glue type
- PUR / EVA
- Docking error
- ±0.3 mm
- Weight
- 700 kg
- Precise infrared docking with ±0.3 mm tolerance.
- Right banding and left trimming combined in one machine.
- Rotatable heads for different shapes and large plates.
- Touch screen stores 20 sets of batch data.

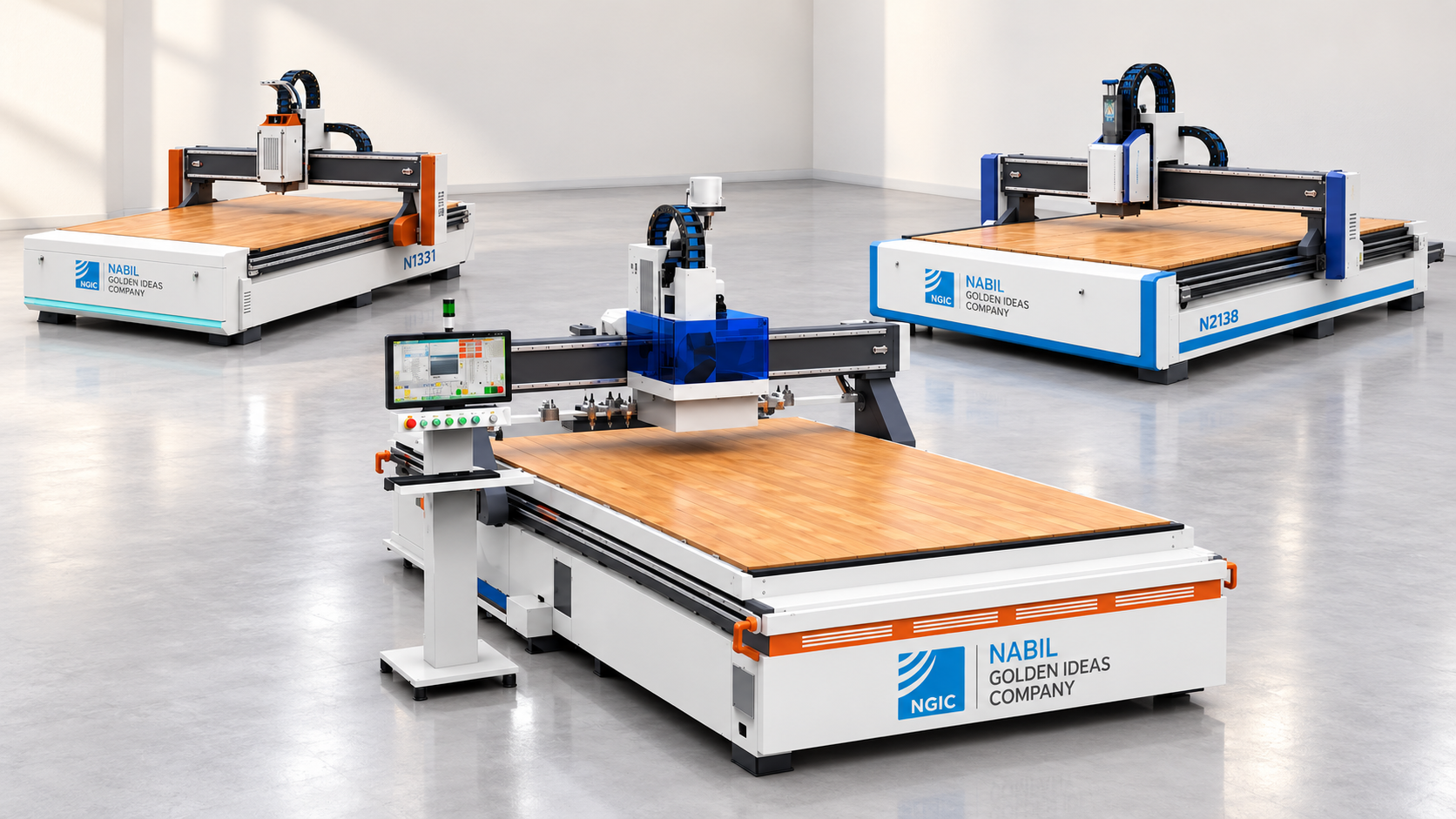

CNC routing
Heavy-duty, high-accuracy routing for panels, doors and shaped components, with T-slot or vacuum tables and servo-driven motion.
The N-series and DM-series routers cover everything from single-sheet nesting to automatic tool-change production lines. All models use HIWIN guide rails, Leadshine servo drives and FULING inverters, and can take cutting lists straight from your CAD output. Higher-end models add a 16-station ATC magazine and vacuum-table workholding for unattended production.
Single-head router for nesting and panel cutting — the workhorse for everyday production.
- Working area
- 1300 × 3100 × 250 mm
- Control
- DSP A11 control system
- Spindle
- HQD 6.0 kW, 18000 RPM
- Motor
- Leadshine 758 Hybrid Servo
- Inverter
- China FULING — 7.5 kW
- Table
- T-slot
- Power supply
- 220V / 3P / 60Hz
- HIWIN 25 guide rails and 1.5M high-precision rack and pinion.
- Heavy-duty machine body for long-term reliability.
- 3 kW dust collector and auto lubrication included.
- Complete support with spare parts and technical guidance.
Extended working area for doors and large components, with built-in control system.
- Working area
- 2100 × 3800 × 300 mm
- Control
- DSP A11 built-in
- Spindle
- HSD 6.0 kW, 18000 RPM
- Motor
- Leadshine Servo 1.5 kW
- Inverter
- China FULING — 11 kW
- Reducer
- Japan Shimpo
- Table
- T-slot (vacuum optional)
- Built-in control — no external box, cleaner installation.
- Large working area suitable for doors and full-size panels.
- HSD spindle and Japan Shimpo reducer for higher durability.
- Stable structure ensures precise and smooth machining.
Automatic tool change for high-volume, multi-tool production — the top of the range.
- Working area
- 2100 × 3800 × 300 mm
- Control
- TAIWAN LNC control system
- Spindle
- HQD 9.0 kW, 24000 RPM
- Tool magazine
- 16-station ATC
- Motor
- Leadshine 1.5 kW servo
- Inverter
- China FULING — 11 kW
- Table
- Vacuum tables + T-slot
- 16-station automatic tool change for higher productivity.
- Vacuum tables plus T-slot for flexible workholding.
- LNC control, HQD spindle, HIWIN rails, Shimpo reducer — premium components throughout.
- 7.5 kW air-cooling vacuum pump and 3 kW dust collector included.
Full technical specifications — spindle power, feed rates, working areas and thickness ranges — are in the catalogue. Request a copy
Hardware, tooling, parts and production planning.
Premium global components.
The parts that decide whether a machine still holds tolerance in year five.
- HIWIN linear rails
- Leadshine servos
- HQD and HSD spindles
- Shimpo reducers
- FULING inverters
- TAIWAN LNC controls
Who buys from NABLUX.
- Woodwork and joinery production
- Panel and board processing
- Door and cabinet production
- Interior fit-out and joinery workshops
- Custom woodworking and design studios
Tell us what you need to produce. We will specify the machine.
Panel sizes, material mix, target output and available floor space are enough to start.
